Bringing car spotting into perspective
Background grid Volkswagen ID.Buzz Van 2022-present Mercedes-Benz SLC Roadster 2016-2020
Spec height1 1.927 m 2
+ 62.6 cm
1 1.301 m Spec height1
+ 57.9 cm 2 4.712 m Spec length
1 4.133 m Spec length
Front wheels
Center wheels
Rear wheels
Front bumper
Center cars
Rear bumper
Now Comparing Photos show real-world appearance vs. specification. See Disclaimer.
Mercedes-Benz SLC-Class Roadster 2016 - 2020
Views available
Mercedes-Benz
SLC-Class
Roadster
Gen. 1 | 2016 - 2020
Spotted in Switzerland 18″
Volkswagen ID.Buzz Van 2022 - present
Views available
Volkswagen
ID.Buzz
Van
Gen. 1 | 2022 - present
Spotted in Switzerland 20″
Compare Car Insurance Rates Personalized quotes in 5 minutes or less with Insurify

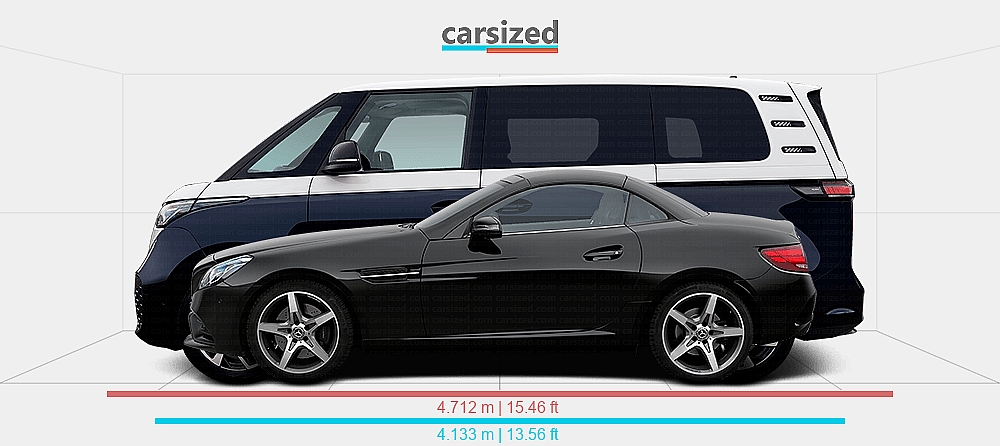

Side View Car Size ComparisonMercedes-Benz SLC-Class (R172) Roadster 2016 vs. Volkswagen ID.Buzz Van 2022


Dimensions & Specifications | Mercedes-Benz SLC-Class (R172) Roadster 2016 is 57.9 cm shorter and 62.6 cm lower compared to Volkswagen ID.Buzz Van 2022. It offers 85% less cargo space.4,5

--
Size class
--
413.3 cm
Length
471.2 cm
+57.9
181 cm
Width2
198.5 cm
+17.5
200.6 cm
Width incl. mirrors
221.2 cm
+20.6
130.1 cm
Height1
192.7 cm
+62.6
243 cm
Wheelbase
298.9 cm
+55.9
-- cm
Ground clearance3
15.8 cm
1435 kg
Weight4,6
2471 kg
+73%
-- km
Range max.
423 km
2
Seats max.
5
+3
335 l
Cargo volume EU4
1121 l
+235%
-- l
Cargo volume max. EU4,5
2205 l
286 l
Cargo volume US4
-- l
-- l
Cargo volume max. US4,5
-- l
Premium
+1
Segment
Standard
€ 35349
Price EU7
€ 64581
+83%
$ 47950
Price US7
$ --
1. Maximum height | 2. Width with folded mirrors when available | 3. Max. ground clearance | 4. Most common power unit. Possible deviation of standards. | 5. With all rear seats folded down | 6. Curb weight | 7. For illustration purpose only. Starting MSRP (Manufacturer Suggested Retail Price).
